Turing Machine Variations and UTM: Equivalence, Simulation and Worked Examples

Multi-tape, nondeterministic, and universal machines sound stronger, but usually change representation or speed, not computability. Trace a two-tape decider on 000111 and decode one encoded transition. CS Fundamentals for Exams & Placements supplies the subject map.

1. Fix the standard Turing machine baseline before comparing variants

Take M=(Q, Sigma, Gamma, delta, q0, q_accept, q_reject) as baseline. Sigma excludes blank B and lies within Gamma. The partial function is delta:(Q-{q_accept,q_reject}) x Gamma -> Q x Gamma x {L,R}. One step changes state, writes once, and moves the head once. A recogniser may loop on a non-member; a decider always halts.

Power equivalence ignores state and step counts. For configurations, practise with Turing Machines: Design, Worked Trace, Decidability.

2. Map the major TM variations and state exactly what changes

Every listed unrestricted variant has deterministic one-tape TM computability, though simulation costs time. An NTM accepts if one branch accepts; rejection requires every branch to halt and reject. A deterministic simulator explores breadth-first, or dovetails, avoiding an infinite branch.

Do not overextend equivalence. Enumerators print Turing-recognisable languages. An LBA is input-space-bounded; an oracle machine gets extra information. Neither is unrestricted.

3. Worked two-tape decider for L = {0^n 1^n | n >= 1}

Tape 1 holds input between left-end and B. Tape 2 starts as left-end [B] B at the first blank. Each Tape 1 0 writes one 0 on Tape 2; both heads move right. At the first 1, Tape 1 stays and Tape 2 moves left once. Each (1,0) moves Tape 1 right and Tape 2 left. Accept only on (B,left-end). Reject a leading 1, a later 0, (1,left-end), or (B,0).

For 000111, start: T1=left-end [0] 0 0 1 1 1 B and T2=left-end [B] B. After three copies: T1=left-end 0 0 0 [1] 1 1 B and T2=left-end 0 0 0 [B]. Rewind gives T2=left-end 0 0 [0] B. Matches 1, 2, and 3 produce (second 1, second stored 0), (third 1, first stored 0), and (B,left-end); the final pair accepts.

Rejection rules expose imbalance:

• 00111 reaches (1,left-end) after two matches.

• 00011 reaches (B,0) after two matches.

• 001011 encounters a Tape 1 0 after the match phase begins.

4. Why the two-tape machine is convenient, not more computable

A one-tape simulator encodes the Rewind configuration as two blocks separated by #:

left-end 000 [1] 11 B # left-end 00 [0] B

A sweep stores (1,0) and state in finite control; another writes and repositions both head markers. After one simulated match:

left-end 0001 [1] 1 B # left-end 0 [0] 0 B

That matches Match 1. A simulator may shift separators for space, but bookkeeping cannot change the verdict.

The two-tape algorithm uses O(n) steps for input length n. Straightforward one-tape simulation of a t(n)-step multi-tape computation can take O(t(n)^2) time. Speed and convenience change; language power does not.

5. Universal Turing machine: decode one machine, then simulate it

A universal Turing machine is a fixed U receiving encoding(M)#encoding(w) and behaving like M on w. It stores the transition table, state, tape, and head position, then applies one encoded rule at a time.

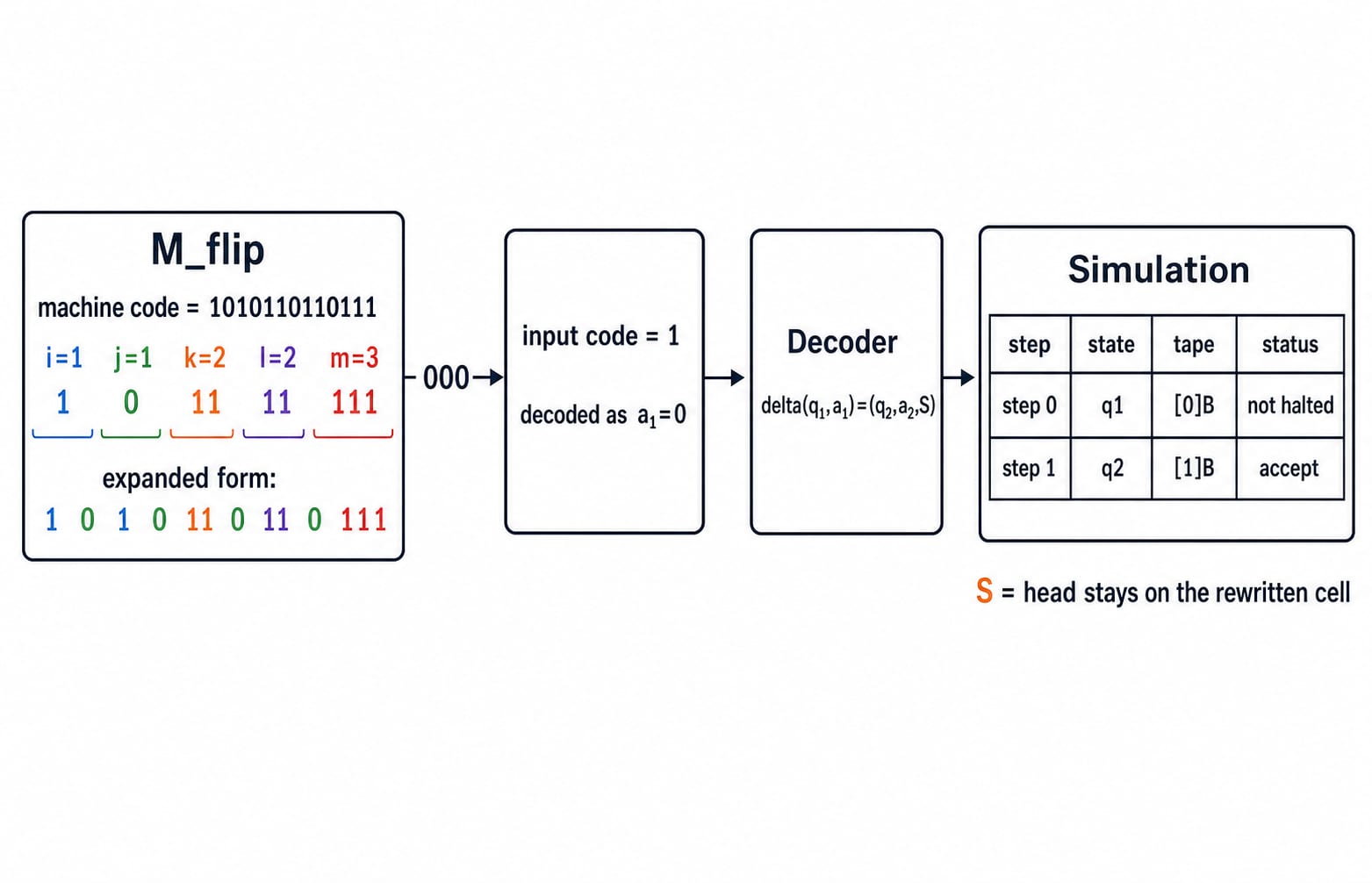

No single binary encoding is canonical, so fix this illustrative convention. Number states q1=start, q2=accept; symbols a1=0, a2=1, a3=B; directions d1=L, d2=R, d3=S. Encode (i,j,k,l,m) as 1^i 0 1^j 0 1^k 0 1^l 0 1^m, using 00 between transitions and 000 between machine and input.

For the one-rule machine M_flip, delta(q1,a1)=(q2,a2,S). The tuple is (1,1,2,2,3), so its expanded code is 1 0 1 0 11 0 11 0 111, compactly 1010110110111. Input 0=a1 has code 1. The complete tokenised pair is 1010110110111 000 1.

A real UTM handles arbitrary valid transition sets; this case isolates decoding and dispatch.

6. Universal simulation does not solve acceptance or halting

Let A_TM={encoding(M,w) | M accepts w}. A universal recogniser mirrors simulated M: it accepts, rejects, or keeps running. Thus U neither decides A_TM nor supplies a general halt detector.

Three outcomes matter. U(encoding(M_flip,0)) accepts after one simulated step. Entering q_reject rejects. A machine with delta(q1,0)=(q1,0,S) repeats forever. Waiting for the third simulation is not a decision procedure.

For proof, read Turing Machines and Decidability: Halting Problem Proof. For semantic properties, read Rice's Theorem for GATE: Two-Part Undecidability Test.

7. How exam-style questions test TM variations and UTM

Questions compare power, k-tape configurations, multi-track versus multi-tape, NTM acceptance, rule decoding, and recognition versus decision.

Watch four traps:

• (B,0) fails because a stored zero remains.

• One single-tape step cannot move both simulated heads; use sweeps and markers.

• Decode 1010110110111 only under the fixed convention.

• U is fixed; its encoded input changes with M.

8. Short version and next study step

• Variants change time and convenience.

• Unrestricted multi-tape and nondeterministic models retain standard-TM power.

• Single-tape simulation encodes tape blocks and head markers.

• A UTM interprets encoding(M,w).

• Universal simulation is not a universal decider.

The two-tape machine accepts 000111 at (B,left-end). U reads 1010110110111 000 1, rewrites 0 as 1, and enters q2. Continue with Theory Of Computation / Automata Theory. Choose Zero to Hero, Complete CS Course for broader rebuilding. Use 10+ tagged questions; reconstruct eight configurations and decode (1,1,2,2,3) unaided.
